5050 RGB Led Strip 5Mtr

The 5050 RGB LED Strip is a highly versatile and popular lighting solution, known for its vibrant colors and flexibility. These strips are widely used in a variety of lighting projects, from home decor to professional displays. Here’s an in-depth look at the features, applications, and technical details of the 5050 RGB LED Strip:

Overview:
The 5050 RGB LED Strip features surface-mount LEDs (SMD) that are larger and brighter than the 3528 SMD LEDs commonly used in other strips. Each 5050 LED has three separate RGB (Red, Green, Blue) diodes in one package, allowing it to produce a wide range of colors by varying the intensity of each diode.

Key Features:
LED Type: 5050 SMD RGB LEDs

LED Density: Typically 30 or 60 LEDs per meter

Control Interface: Can be controlled using various methods, including remote controls, microcontrollers, and dedicated LED controllers.

Operating Voltage: Commonly available in 12V and 24V versions

Power Consumption: Approximately 0.3W per LED, leading to about 18W per meter for 60 LEDs/meter

Brightness: High brightness due to larger LED size

Color Range: Capable of producing millions of colors through RGB mixing

Protection: Available in non-waterproof (IP20) and waterproof (IP65, IP67, IP68) versions

Technical Specifications:

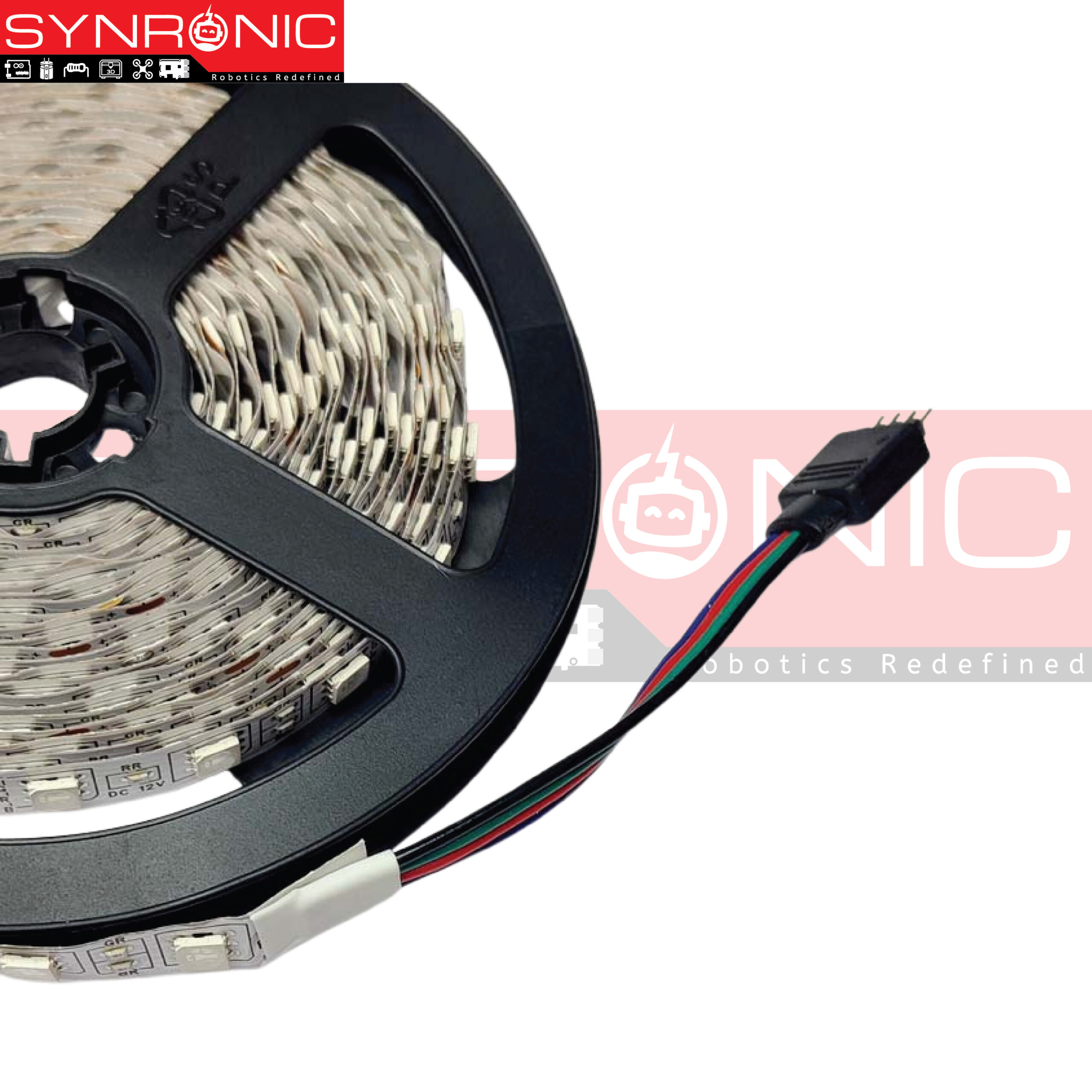

Length: Typically sold in rolls of 5 meters

Width: Standard width is around 10mm

Luminous Intensity: Varies depending on the specific model, generally around 16-18 lumens per LED

Beam Angle: Approximately 120 degrees

Lifespan: Rated for around 50,000 hours

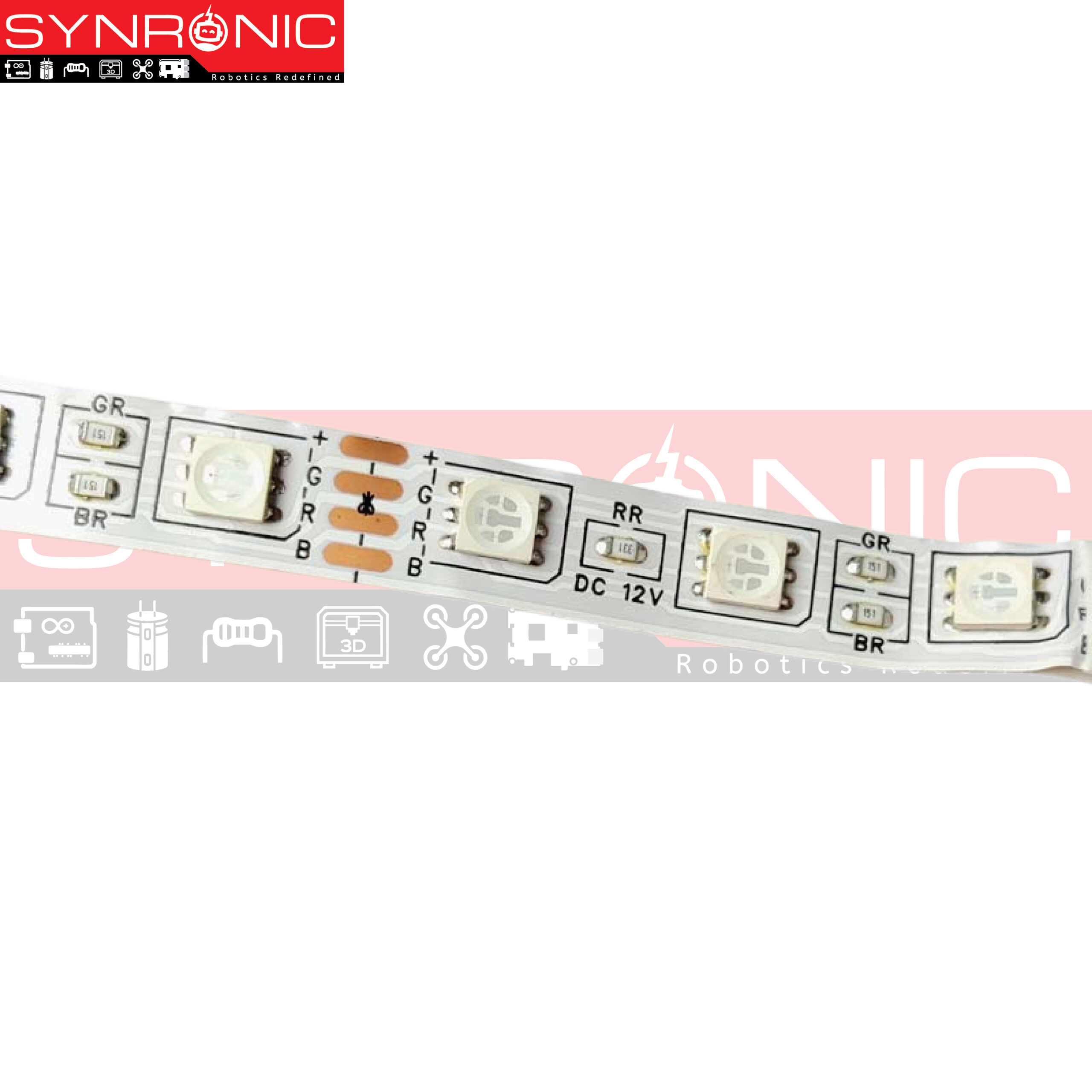

Pin Configuration:
The 5050 RGB LED Strip typically has four main connections:

12V/24V+: Positive power supply

R: Red channel

G: Green channel

B: Blue channel

Working Principle:
The 5050 RGB LED Strip works by combining the light from the red, green, and blue diodes in each LED package to create a wide spectrum of colors. By adjusting the intensity of each color channel, you can create virtually any color. This can be done using PWM (Pulse Width Modulation) signals, controlled by an LED controller or microcontroller.

Applications:
Home Decor: Ideal for creating ambient lighting in living rooms, bedrooms, kitchens, and more.

DIY Projects: Perfect for custom lighting solutions in electronics projects, such as gaming setups and DIY displays.

Outdoor Lighting: Suitable for outdoor decorations and garden lighting, especially the waterproof versions.

Events and Parties: Enhances the ambiance of events with customizable lighting effects.

Commercial Use: Widely used in retail displays, signboards, and architectural lighting.

Advantages:
High Brightness: The larger 5050 LEDs provide bright and vibrant colors.

Flexibility: The strip can be bent and cut to fit various spaces and shapes.

Easy Integration: Can be easily controlled with various methods, including simple remote controls and microcontrollers.

Wide Color Range: Capable of producing millions of colors through RGB mixing.

Waterproof Options: Suitable for both indoor and outdoor applications with available waterproof versions.

Implementation Tips:
Power Supply: Ensure you use a suitable power supply that can handle the total current draw of the strip (considering each LED draws about 0.3W at full brightness).

Heat Management: For high-intensity use, consider heat management solutions to prevent overheating.

Proper Connection: Ensure correct wiring to prevent damage to the LEDs and the controller.

The 5050 RGB LED Strip is a versatile and powerful lighting solution, offering bright, vibrant colors and flexible installation options. Whether you’re looking to enhance your home decor, work on a DIY project, or set up professional lighting, this LED strip is an excellent choice.
