The HCSR501 PIR Motion Sensor is a highly reliable and widely used passive infrared (PIR) sensor designed to detect motion in a wide range of applications. Here’s a detailed description:
Working Principle:

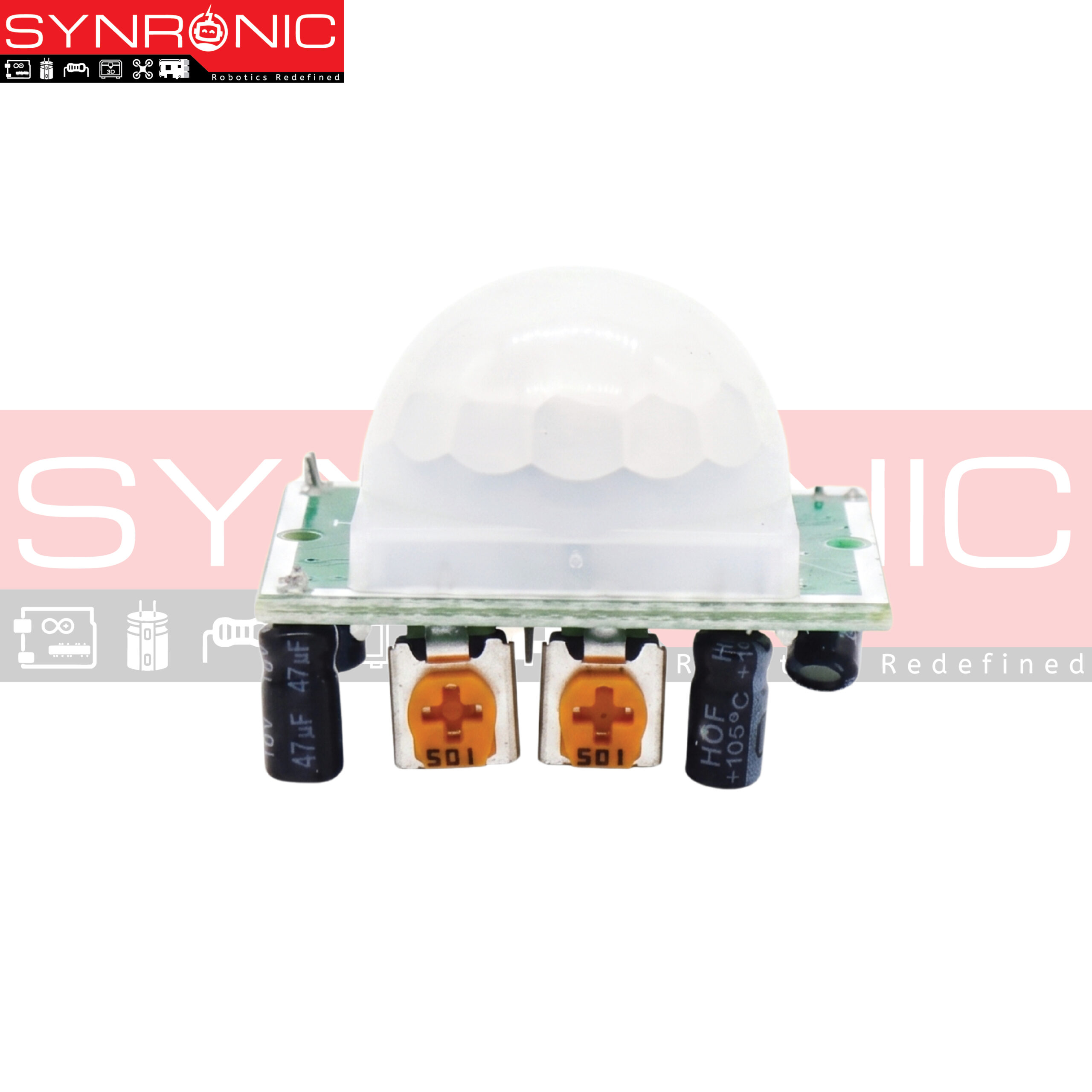

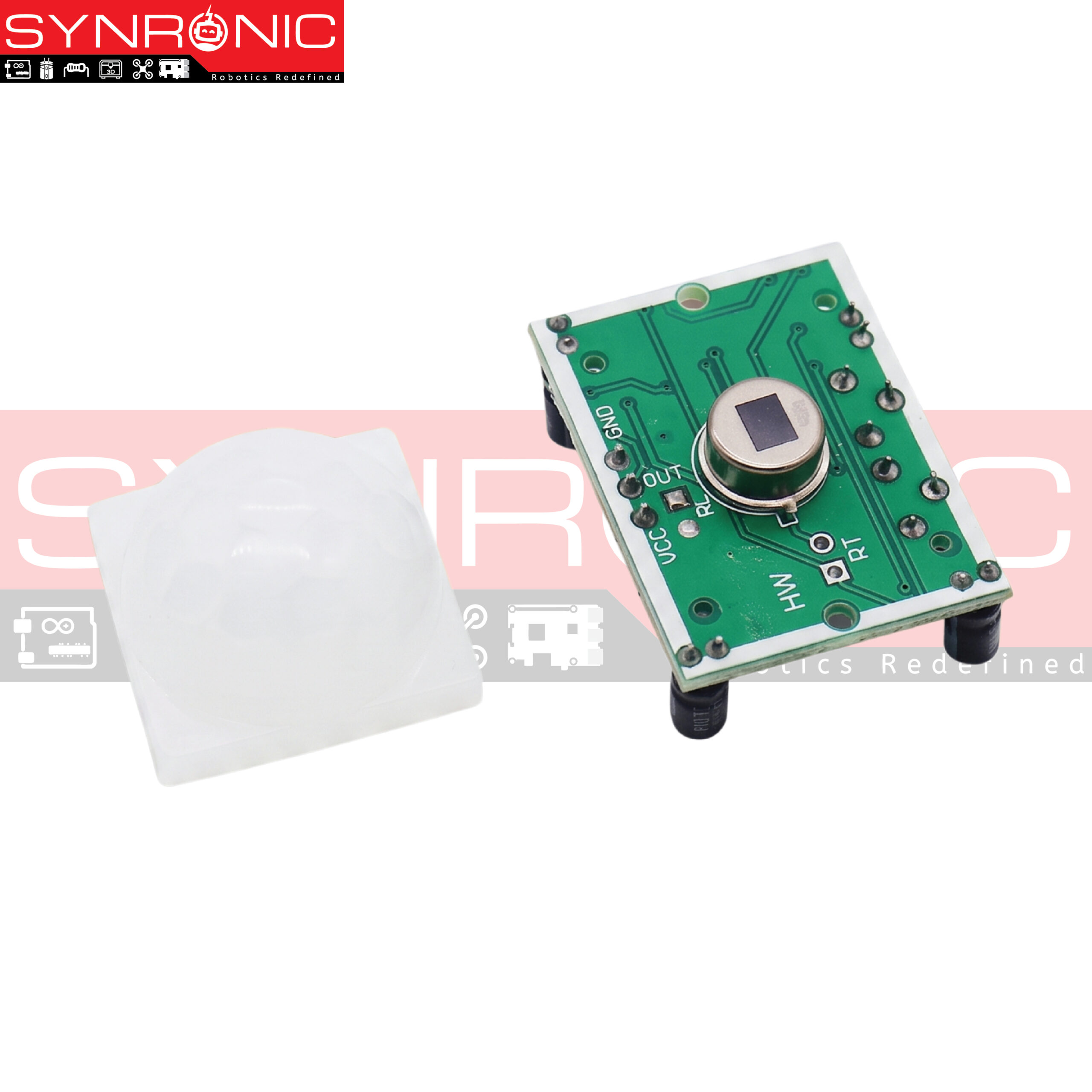

The HCSR501 PIR Motion sensor works by detecting the infrared radiation emitted by objects in its field of view. When a moving object, such as a person, passes within its range, the sensor detects the change in infrared radiation and outputs a signal indicating motion detection. The sensor is equipped with a Fresnel lens to increase its detection range and sensitivity.
Key Features:
Operating Voltage: 5V to 20V DC, making it compatible with a wide range of microcontrollers and power sources.
Detection Range: Adjustable detection range from 3 meters to 7 meters, allowing for customizable sensitivity.
Detection Angle: Wide-angle detection with a field of view of approximately 120 degrees.
Output: Digital output (HIGH when motion is detected, LOW when no motion is detected).

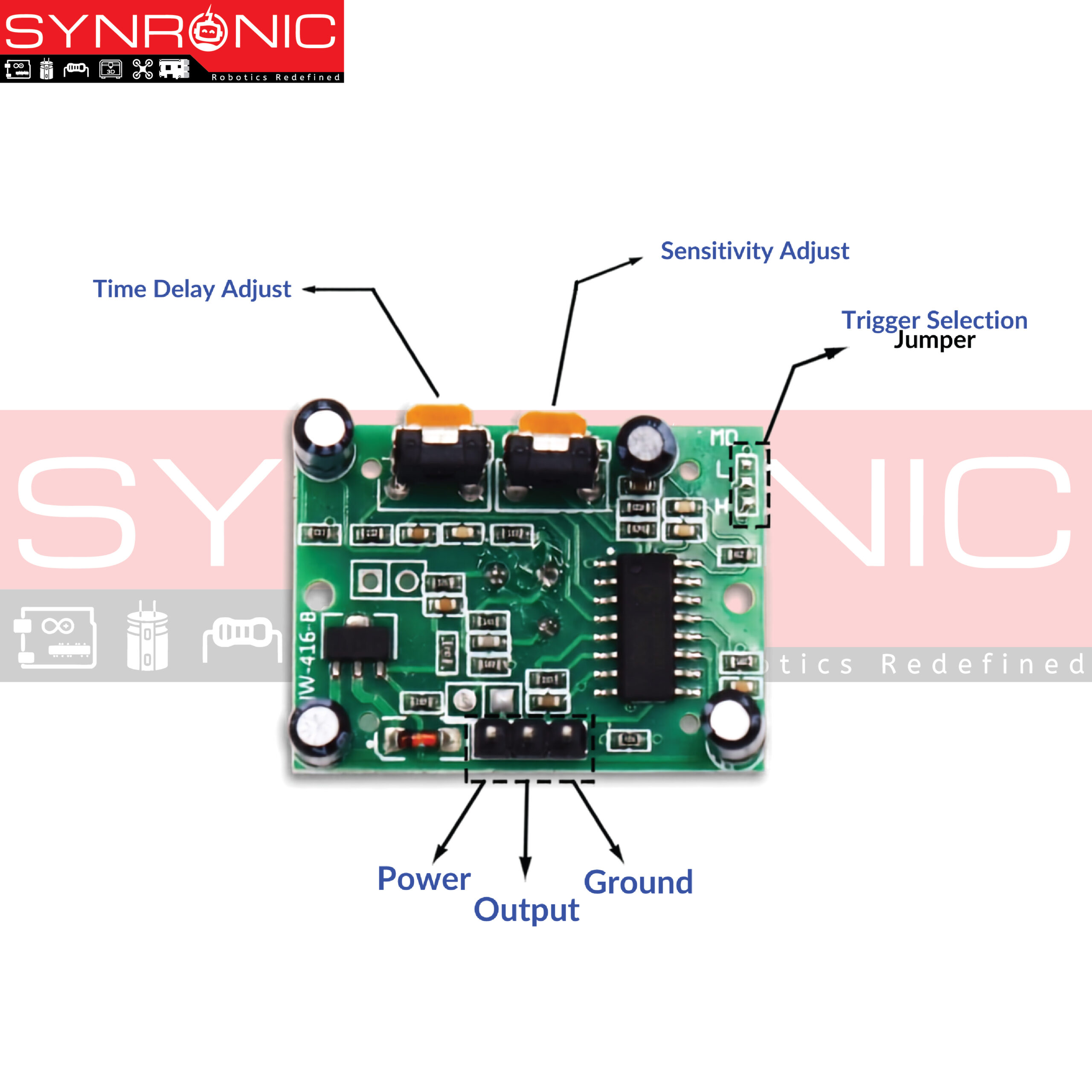

Time Delay: Adjustable time delay from 5 seconds to 5 minutes, determining how long the output remains HIGH after motion is detected.
Sensitivity Adjustment: Potentiometer for adjusting the sensitivity of the sensor.
Power Consumption: Low power consumption, making it suitable for battery-operated devices.
Compact Design: Small form factor for easy integration into various projects.
Technical Specifications:
Operating Voltage: 5V to 20V DC
Detection Range: 3 meters to 7 meters (adjustable)
Detection Angle: Approximately 120 degrees
Output Type: Digital signal (HIGH/LOW)
Time Delay: 5 seconds to 5 minutes (adjustable)
Sensitivity Adjustment: Potentiometer
Dimensions: Typically around 32mm x 24mm x 23mm
Applications:
Security Systems: Use in alarm systems to detect intruders and activate security measures.
Automatic Lighting: Control lights to turn on automatically when motion is detected, improving energy efficiency.
Home Automation: Integrate into smart home systems for motion-activated devices and automation.
Robotics: Implement in robots for motion detection and obstacle avoidance.
Consumer Electronics: Use in devices that require motion sensing, such as automatic doors and appliances.
Environmental Monitoring: Monitor wildlife and other environmental movements for research purposes.
Advantages:
High Sensitivity: Accurate and reliable motion detection, even at a considerable distance.
Adjustable Settings: Customizable detection range and time delay for various applications.
Versatile Use: Suitable for a wide range of applications, from security to home automation.
Easy Integration: Simple to connect and use with most microcontrollers, including Arduino, Raspberry Pi, and ESP32.
Low Power Consumption: Suitable for battery-operated devices, ensuring long-lasting performance.
Durable Construction: Built with quality components to ensure long-lasting reliability.
Limitations:
Environmental Sensitivity: Performance can be affected by environmental factors such as temperature, humidity, and direct sunlight, requiring careful placement and calibration.
False Positives: May occasionally detect non-human motion, such as pets or moving objects, leading to false positives.
Limited Range: The detection range is limited to a maximum of 7 meters, which may not be suitable for all applications.
The HCSR501 PIR Motion Sensor is an excellent choice for anyone needing reliable motion detection in their projects. Its combination of high sensitivity, adjustable settings, and easy integration makes it a popular choice among hobbyists, educators, and professionals alike.
