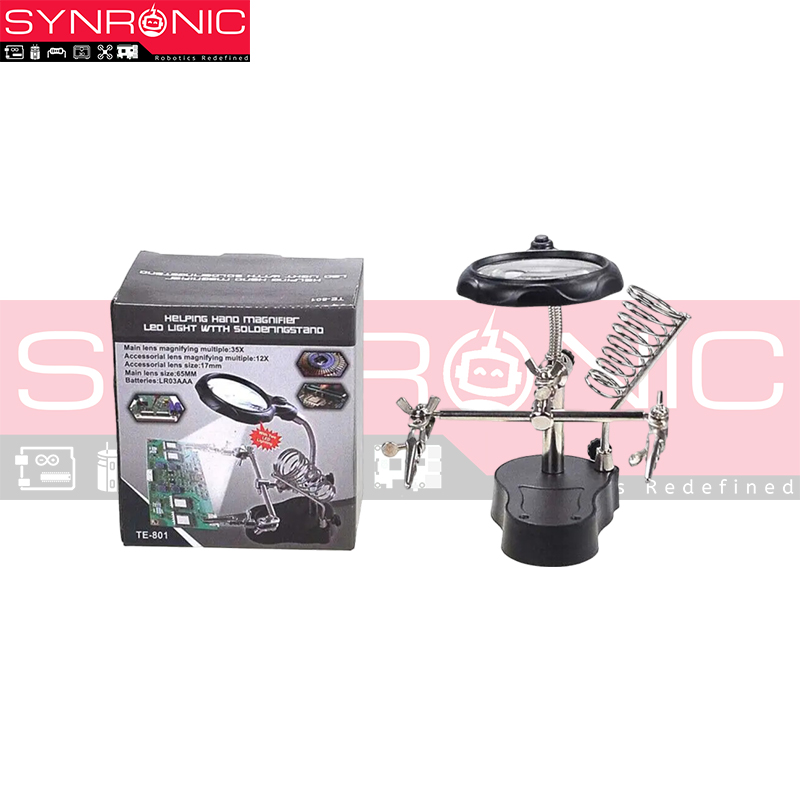

TE-801 Helping Hand

The TE-801 Helping Hand Tool is a versatile and handy device for electronics enthusiasts and hobbyists. Here’s a detailed overview:

Key Features
Magnification: Equipped with a 3.5x and 12x magnifying glass for clear visibility of small components.

LED Lighting: Two built-in LED lights provide illumination, making it ideal for working in low-light conditions.

Adjustable Clamps: Comes with adjustable crocodile clips and flexible gooseneck to hold components in place.

Stability: The base is weighted with a steel plate for enhanced stability.

Battery Powered: Operates on three AAA batteries (not included).

Applications: Soldering, model making, stamp collecting, embroidery, antiques, biological observation, and more.

Specifications

Magnification 3.5x, 12x
LED Lights 2
Adjustable Clamps Yes
Base Material Steel
Battery Type 3 x AAA
Dimensions 10 x 6.5 x 2 cm
Weight 406g

Applications
Soldering: Provides a stable platform to hold PCBs and components while soldering.

Model Making: Useful for holding small parts in place during assembly.

Stamp Collecting: Magnifies stamps for easier inspection and handling.

Embroidery: Holds fabric steady while working on detailed embroidery.

Antiques: Magnifies small details on antiques for better examination.

Biological Observation: Assists in observing small biological specimens.

Setup and Usage
Powering the Device: Insert three AAA batteries into the battery compartment.

Adjusting Clamps: Use the adjustable crocodile clips to hold components in place.

Positioning the Magnifier: Adjust the flexible gooseneck to position the magnifying glass as needed.

Using the LED Lights: Turn on the LED lights for better visibility.

Safety Precautions
Handle with Care: Avoid dropping the device to prevent damage.

Proper Battery Installation: Ensure batteries are installed correctly to avoid leakage.

Secure Clamping: Make sure clamps are securely fastened to prevent slipping.

The TE-801 Helping Hand Tool is an essential accessory for anyone involved in electronics, model making, or detailed work requiring a steady hand. Its adjustable clamps, magnifying glass, and LED lights make it a valuable tool for various applications.
