Sensor Boards And Modules
Showing 16–30 of 117 results
-
Sensor Boards And Modules
ADS1115 ADC-4 Channel Module
ADS1115 Module – High-Precision ADC!
The ADS1115 is a 16-bit ADC with 4 input channels, operating from 2.0V to 5.5V. It supports the I2C protocol for easy integration and has a programmable gain amplifier. Ideal for sensor data collection, environmental monitoring, and industrial automation.
SKU: n/a -
Sensor Boards And Modules
ADXL335 Module
ADXL335 Module – Compact 3-Axis Accelerometer!
ADXL335 module measures acceleration in X, Y, and Z directions with a range of ±3g. It features analog voltage outputs, low power consumption, and is easy to interface with microcontrollers. Ideal for motion sensing, gaming devices, and tilt detection.SKU: n/a -
Sensor Boards And Modules
ADXL345 Module
The ADXL345 module is a compact, low-power 3-axis accelerometer with high resolution (13-bit) measurement, capable of detecting tilt, motion, and shock. It supports both SPI and I2C interfaces, making it easy to integrate with microcontrollers. Ideal for applications in mobile devices, gaming, and health monitoring
SKU: n/a -
Sensor Boards And Modules
Analog pH Sensor Kit with Probe
This analog pH sensor kit includes a high-sensitivity glass electrode probe and a signal conditioning board that outputs a voltage proportional to the pH level. Ideal for water quality monitoring, hydroponics, aquariums, and lab experiments.
🔧 Technical Details:
- Measurement Range: pH 0–14
- Output Signal: 0–5V analog (compatible with microcontroller ADCs)
- Operating Voltage: 5V DC
- Accuracy: ±0.1 pH (with proper calibration)
- Interface: 3-pin header (VCC, GND, Analog Out)
- Probe Connector: BNC
- Calibration: Manual trimmer potentiometer on board
- Temperature Range: 0°C to 60°C (probe dependent)
- Cable Length: ~1 meter
This kit is plug-and-play with Arduino, ESP32, and other platforms, and can be calibrated using standard buffer solutions (pH 4.0, 7.0, 10.0) for reliable readings
SKU: n/a -
Sensor Boards And Modules
Arduino Camera Module OV7670 CMOS
The OV7670 camera module is a low-cost, 0.3MP CMOS image sensor designed for embedded vision applications. It captures 640×480 VGA resolution at up to 30fps and communicates via an 8-bit parallel interface. Ideal for Arduino and microcontroller projects, it supports YUV, RGB, and JPEG formats (with external encoding) and includes onboard registers for exposure, gain, and color balance control. Compact and lightweight, it’s commonly used in robotics, surveillance, and image processing experiments
SKU: n/a -
Sensor Boards And Modules
Arduino TFT Shield 2.4 inch with capacitive touch
Arduino TFT Shield 2.4 Inch Touch Screen – Interactive Display Module!
The Arduino TFT 2.4 Inch Shield Touch Screen features a 240×320 resolution, integrated touch panel, and a microSD card slot. Ideal for creating interactive projects, data visualizations, and smart home dashboards.
Perfect for adding a touch interface to your Arduino projects!
SKU: n/a -
Sensor Boards And Modules
Arduino TFT Shield 3.5 inch With Touch
The 3.5-inch TFT for Arduino with Touch is a high-resolution display module that provides a clear and interactive touchscreen interface for your Arduino projects.
Here are some key features:Display Size: 3.5 inches
Resolution: 320×480 pixels
Color Depth: 65K colors (16-bit color)
Display Type: IPS for wide viewing angles
Touchscreen Interface: Capacitive touch sensors
Operating Voltage: 3.3V to 5V
Interface: 8-bit parallel port communication
Applications:
Ideal for projects requiring a large display, such as digital picture frames, gaming consoles, and home automation systems.SKU: n/a -
Sensor Boards And Modules
BMP180 Digital Barometric Pressure Sensor Module
The BMP180 module is a compact digital barometric pressure sensor that also measures temperature, ideal for weather monitoring and altitude tracking in embedded systems.
🌡️ Technical Specifications:
• Sensor Type: Barometric pressure + temperature
• Pressure Range: 300 to 1100 hPa
• Altitude Accuracy: ±1 meter
• Interface: I²C (default) or SPI
• Operating Voltage: 1.8V to 3.6V
• Temperature Range: –40°C to +85°CSKU: n/a -
Sensor Boards And Modules
Current Sensor ACS712 30A
The ACS712-30A current sensor is a commonly used current sensor with a 30A nominal current rating. It is not a module itself but rather the maximum current rating of the ACS712 series that can be used to measure currents up to 30A.
To measure currents up to 30A, you can use the ACS712-30A IC in your circuit. It operates similarly to other ACS712 modules, employing the Hall effect to sense the magnetic field generated by the current flowing through a conductor and converting it into a voltage output. The output voltage will have a sensitivity of 66mV per ampere of current.
SKU: n/a -
Sensor Boards And Modules
Current Sensor ACS712-20A
The ACS712-20A is another variant of the ACS712 current sensor series. Similar to the ACS712-5A, the ACS712-20A is an integrated circuit (IC) module designed for measuring current in electronic circuits using the Hall effect principle. However, the ACS712-20A has a higher nominal current rating of 20A, making it suitable for measuring higher current levels.
This module provides an analog voltage output that is proportional to the current passing through it. The output voltage has a sensitivity of 100mV per ampere of current, meaning that for every ampere of current flowing through the module, the output voltage will increase by 100mV.
SKU: n/a -
Sensor Boards And Modules
Current Sensor ACS712-5A
The ACS712-5A is an integrated circuit (IC) module that is commonly used for measuring current in electronic circuits. It is a Hall effect-based linear current sensor that can accurately measure both AC and DC currents.
The ACS712-5A module has a 5A nominal current rating, meaning it is designed to measure currents up to 5A. It provides an analog output voltage that is proportional to the measured current, allowing easy interfacing with microcontrollers or other analog-to-digital converters (ADCs).
SKU: n/a -
Sensor Boards And Modules
DHT 11 Temperature and Humidity Sensor
This DHT11 is a sensor that combines both temperature and humidity sensing capabilities in a single package. It is not available as a standalone temperature-only or humidity-only sensor.
The temperature and humidity sensor DHT11 includes a built-in resistive humidity sensor and a thermistor for temperature measurement. These two sensing elements work together to provide temperature and humidity readings.
This sensor module communicates with a microcontroller or other digital devices using a digital signal. It sends data in a serial format, where the microcontroller can read the temperature and humidity values from the sensor.
SKU: n/a -
Sensor Boards And Modules

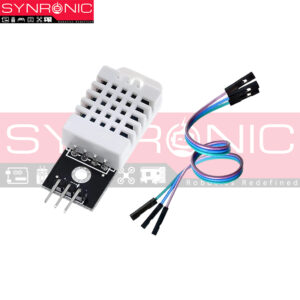

DHT22 Temperature and Humidity Module
DHT 22 Temperature and Humidity Module – High Accuracy!The DHT22 module offers precise readings for temperature and humidity, operating at 3.3V to 5.5V DC. It covers a temperature range of -40°C to 80°C and humidity range of 0% to 100%, perfect for home automation, weather stations, and DIY projects.SKU: n/a -
Sensor Boards And Modules

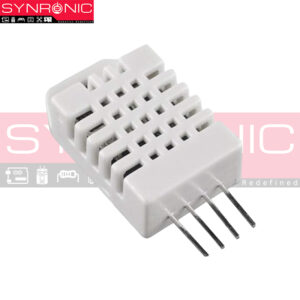

DHT22 Temperature and Humidity Sensor Only
The DHT 22 Temperature and Humidity sensor is a standalone temperature and humidity sensor.
DHT 22 Temperature and Humidity sensor is perfect for various applications. It operates at 3.3V to 5.5V DC, measures temperature from -40°C to 80°C and humidity from 0% to 100%, and outputs digital data for easy interfacing with microcontrollers.SKU: n/a -
Sensor Boards And Modules
DS18b20 Temperature Sensor with Probe
DS18B20 Temperature Sensor with Probe – Precise and Waterproof!The DS18B20 temperature sensor provides accurate digital measurements from -55°C to 125°C with ±0.5°C accuracy. It features a waterproof probe and easy 1-wire interface, ideal for home automation, weather stations, and industrial applications.SKU: n/a
