Sensor Boards And Modules

The u-blox GPS module NEO-6M is a widely used GPS (Global Positioning System) module that provides accurate positioning and timing information. It is a compact and cost-effective module commonly used in various applications, including navigation systems, vehicle tracking, drones, and location-based projects.

Here are some key features and information about the NEO-6M GPS module:

1. Positioning Accuracy: The module can provide positioning accuracy within a few meters, depending on the quality of the received satellite signals and other factors. It supports the simultaneous reception of up to 50 satellites from GPS, GLONASS, and other positioning systems.
2. Communication Interface: The module communicates with a microcontroller or other devices using a serial communication interface, typically UART (Universal Asynchronous Receiver-Transmitter). It uses standard NMEA (National Marine Electronics Association) protocol to transmit GPS data.
3. Output Data: The module provides various data outputs, including latitude, longitude, altitude, velocity, date, time, and satellite information. The data is typically in the NMEA format, which can be easily parsed and processed by microcontrollers or software applications.
4. Power Supply: The module operates on a 3.3V power supply and consumes relatively low power, making it suitable for battery-powered applications.
5. Configuration: The GPS NEO-6M module can be configured using specific AT (Attention) commands sent over the serial interface. These commands allow you to adjust parameters such as update rate, baud rate, and output message formats.

When using the  GPS module NEO-6M, it’s essential to provide a clear view of the sky to ensure better satellite reception. Additionally, integrating the module with a microcontroller or other processing unit enables you to make use of the GPS data for your specific application.

The HC-05 is a popular Bluetooth module commonly used for wireless communication between electronic devices. It is based on the Bluetooth 2.0+EDR (Enhanced Data Rate) standard and is designed for easy integration into various projects.

The module allows devices to establish a Bluetooth connection and communicate wirelessly over short distances, typically up to 10 meters. It supports both the Bluetooth Serial Port Profile (SPP) and the Bluetooth Master-Slave mode, making it compatible with a wide range of devices and applications.

The HX711 pressure module is essentially a load cell amplifier used to measure pressure with high precision. Here are some key features:

24-bit A/D Converter: Provides high-resolution measurements.

Dual-Channel Input: Allows for two selectable differential input channels.

Selectable Gain: Offers gain settings of 32, 64, and 128 to accommodate different load cell types.

Two-Wire Interface: Uses Clock and Data lines for communication with a microcontroller.

Low Power Consumption: Operates within a voltage range of 2.7V to 5V.

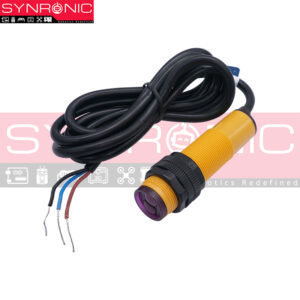

An IR sensor module(infrared sensor module) is a device that detects infrared radiation and is commonly used for proximity sensing, object detection, and motion detection.

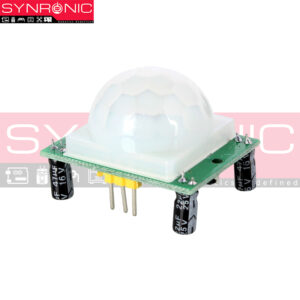

IR sensor modules can operate in different sensing modes, including proximity sensing and motion detection. Proximity sensing detects the presence of an object within a specific range, while motion detection detects movement within the sensor’s field of view.
